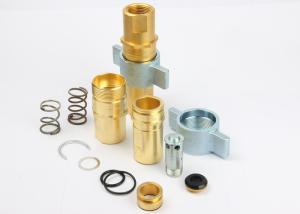

Light Weight Female Threaded Coupling Parker 6100 Series Connect Under Pressure

Brand Name : SONGQIAO

Model Number : KZE-BB

Place of Origin : Ningbo,China(Mainland)

Supply Ability : 50,000pcs/day, according the capacity of the assembly workshop

Delivery Time : within 30 days or as per customers' requirement.

Packaging Details : standard exporting package or as per customers' requests.

MOQ : negotiable

Price : negotiable

Standard : Compatible with PARKER 6100 series, thread locked

WP : Working pressures to 3,000 psi (207 bar)

Material : Brass

Size : 3/4' - 1-1/4'

Thread : BSPP, BSPT, NPT, NPTF, SAE

Connection : Thread lock

Contact Now

KZE-BB Threaded Connect Type, Parker 6100 Series, Connect under Pressure, Hydraulic Quick Couplings

Descripton:


KZE-BB Thread type hydraulic quick coupling (brass)
Applications:

• Submersible pumps
• Oil field equipment
• Dump trailers
• Engine test stands
• Bulk liquid transfer


Specifications:

Body Size(in) 3/4 1 1-1/4
Rated Pressure(PSI) 3000 3000 3000
Rated Flow(GPM) 28 50 88
Temperature Range(std seals) -20℃ to +120℃
Standard seal material NBR

KZE-BB Features:
1. KZE-BB Heavy-dust wing nut is ruggedly built specifically to withstand the hammer blows commonly used to tighten and loosen thin coupler.
2. Assembled valve seal can permits full pressure connect and disconnect, without seal washout.
3. The flush face valve keeps air inclusion and spillage to a minimum
4. Corrosion resistant brass coupling, makes it compatible with a widely range and provides widely functionality.
5. Compatible with PARKER 6100 series, FASTER FB series, AEROQUIP 5100 series, HANSEN 96 series.
Performance: Test Fluid:Oil-200SUS,1GPM=3.78L/Min,1PSID=0.0069MPa.

KZE-BB series (1")

PART NO. T D HEX1 HEX2 L LS LP
KZE-BB-06 NPT3/4" 106 33.5 29 133.5 66 79.2
KZE-BB-08 NPT1" 110 39.5 36 157 83.5 90
KZE-BB-10 NPT1-1/4” 132 48 45 164 89 94
